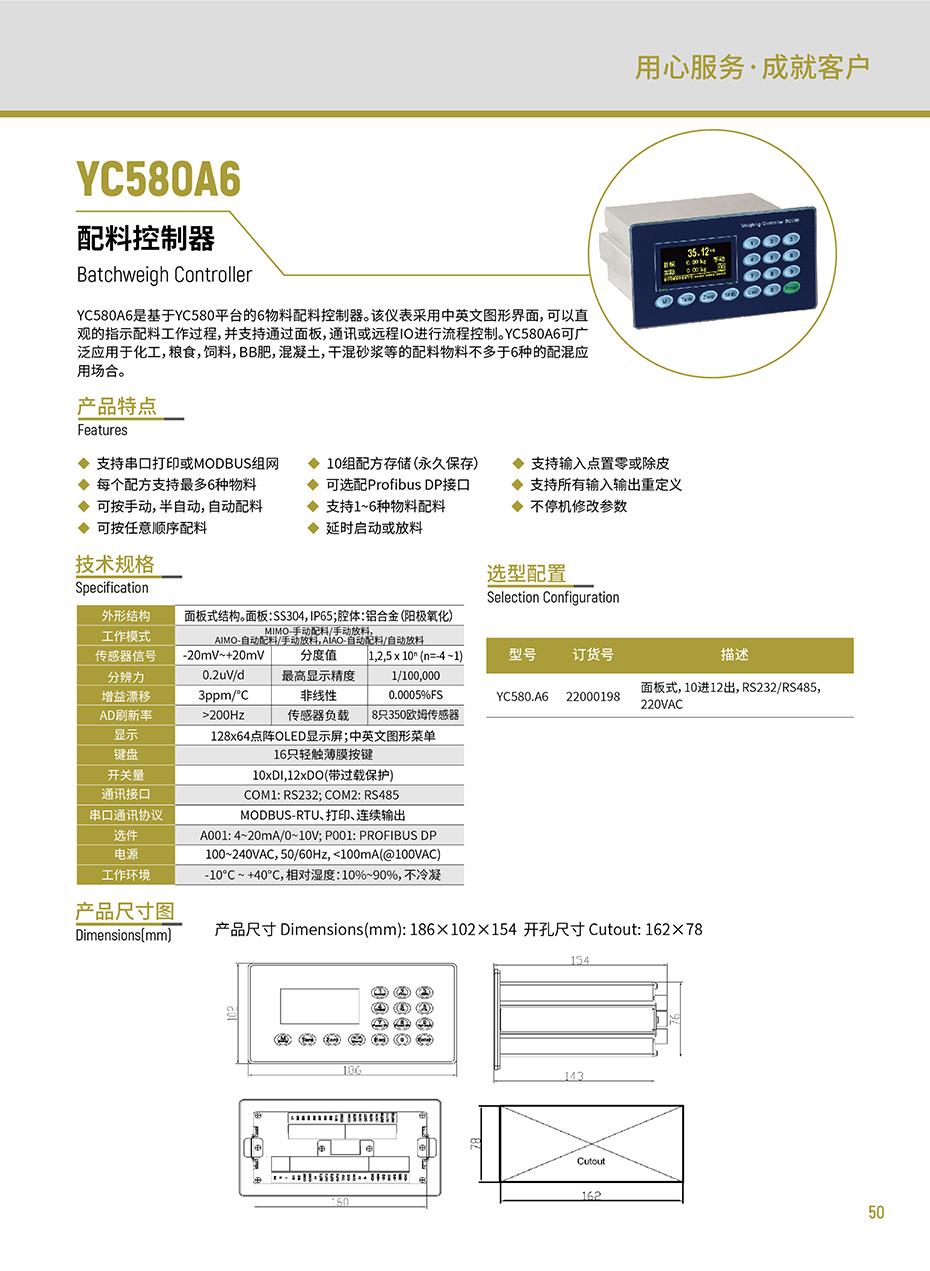

YC580A6

来源:   作者:admin 发布时间:2019/10/07 浏览量:512


YC580A6是基于YC580平台的6物料配料控制器。该仪表采用中英文图形界面,可以直观的指示配料工作过程,并支持通过面板,通讯或远程IO进行流程控制。BC580A6可广泛应用于化工,粮食,饲料,BB肥,混凝土,干混砂浆等的配料物料不多于6种的配混应用场合。

YC580A6 is a 6-ingredient batching controller derived from industrial weighing platform YC580. The instrument is equipped with an OLED dot-matrix GUI and can provide intuitive working procedure prompts, can operate from panel, remote IO and/or communication. This batching controller can be widely used in the application with batching materials less than 6 ingredients such as chemical, food, cereal, feed, BB fertilizer, and commercial concrete and dry mixed mortar.
11

产品尺寸 Dimensions(mm): 186×102×154  开孔尺寸 Cutout: 162×78



YC580A6尺寸图
        技术规格 Specification:

外形结构

Enclosure

面板式结构。面板:SS304IP65;腔体:铝合金(阳极氧化)

Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum

配料模式

Batch Mode

MIMO-手动配料/手动放料,AIMO-自动配料/手动放料,AIAO-自动配料/自动放料

MIMOAIMOAIAO

传感器信号

Signal Range

-20mV~+20mV

分度值

Increments

1,2,5 x 10n (n=-4 ~1)

分辨力

Max. Sensitivity

>0.2uV/d

最高显示精度

Max. Resolution

1/100,000

增益漂移

FS Drift

3ppm/°C

非线性

Linearity

0.0005%FS

AD刷新率

AD Refresh Rate

>200Hz

传感器负载

Cells Load

8350欧姆传感器

Eight (8) 350 ohm load cells

显示 / Display

128x64点阵OLED显示屏;中英文图形菜单

128x64 Yellow-Green OLED display

键盘 / Keypad

16只轻触薄膜按键

16 Flat switch membrane with tactile-feel keys; polyester overlay

开关量

Discrete I/O

10xDI,12xDO(带过载保护)

10 Inputs; 12 Outputs(24VDC @500mA with over-load protection)

通讯接口 / USART

COM1: RS232COM2: RS485

串口通讯协议

Serial Protocol

MODBUS-RTU、打印、连续输出

MODBUS-RTU,  Print, Continuous Output

选件 / Option

A001: 4~20mA/0~10V; P001: PROFIBUS DP

电源/ Power Supply

100~240VAC50/60Hz, <100mA(@100VAC)

工作环境

Operating Temperature

-10°C ~ +40°C,相对湿度:10%~90%,不冷凝

-10°C ~ +40°CRelative humidity:10%~90%non-condensing
