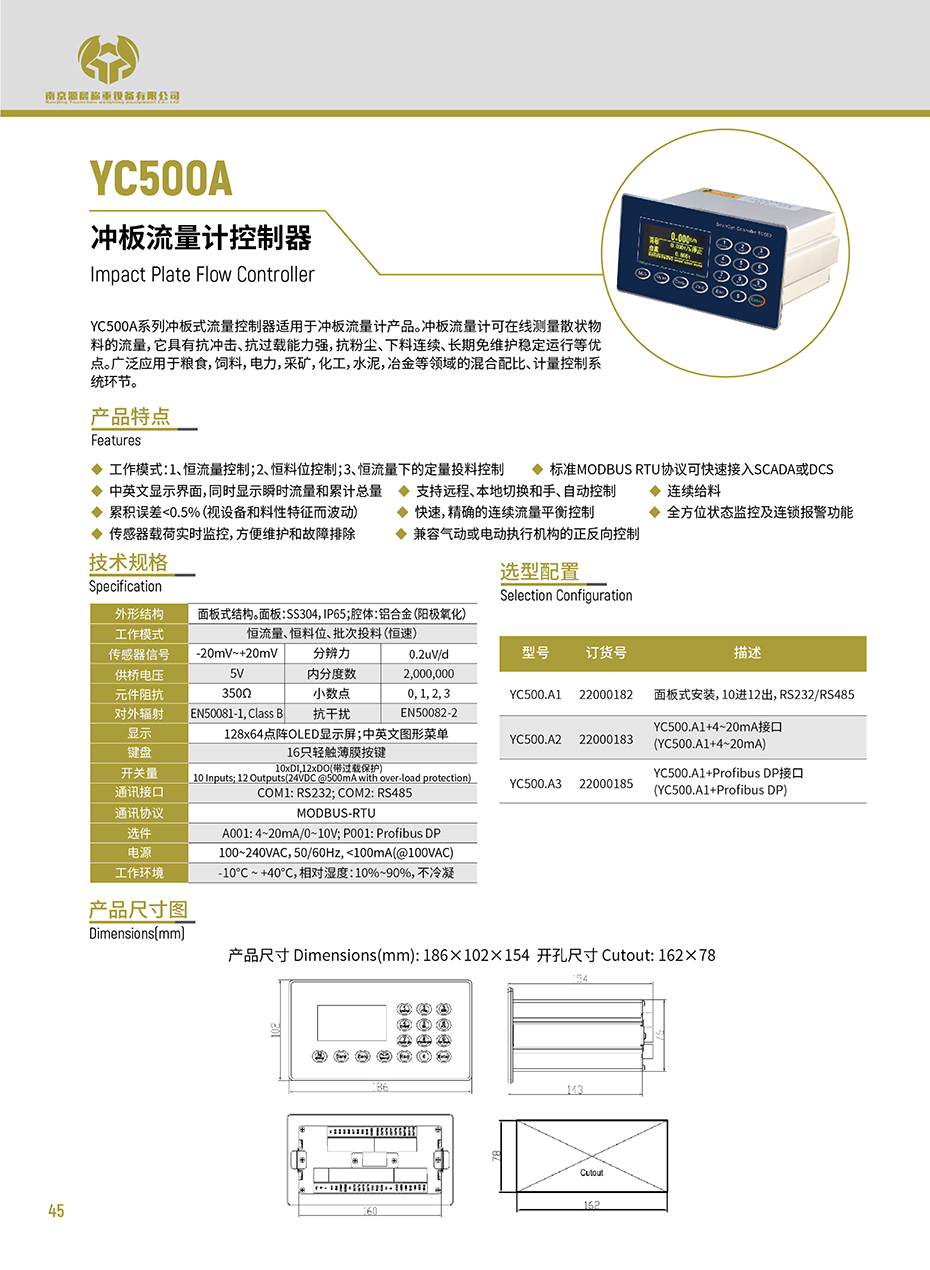

YC500A

来源:   作者:admin 发布时间:2019/10/07 浏览量:470


YC500系列冲板式流量控制器适用于冲板流量计产品。冲板流量计可在线测量散状物料的流量,它具有抗冲击、抗过载能力强,抗粉尘、下料连续、长期免维护稳定运行等优点。广泛应用于粮食,饲料,电力,采矿,化工,水泥,冶金等领域的混合配比、计量控制系统环节。

YC500 impact plate flow controller is designed for impact plate flow balance or flow meter products. Impact plate flow meter can automatically maintain a prespecified throughput of free-flowing bulk material. It has advantages as overload protection, continuous feeding, long-term stability and easy maintenance. Widely used in gravimetric proportioning of blending different material varieties application of food, feed, electric power, mining, chemical, cement, metallurgy and other fields.

11

    产品尺寸 Dimensions(mm): 186×102×154  开孔尺寸 Cutout: 162×78
1

技术规格 Specification:

外形结构

Enclosure

面板式结构。面板:SS304IP65;腔体:铝合金(阳极氧化)

Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum

工作模式

Run Mode

恒流量、恒料位、批次投料(恒速)

Constant feeding, Material level Balancing, Batch feeding

传感器信号

Signal Range

-20mV~+20mV

分辨力

Max. Sensitivity

0.2uV/d

供桥电压 / Excitation

5V

内分度数/Inner Division

2,000,000

元件阻抗 / Resistance

350Ω

小数点 / Dec.point

0, 1, 2, 3

对外辐射 / Emission

EN50081-1, Class B

抗干扰 / EMI

EN50082-2

显示

Display

128x64点阵OLED显示屏;中英文图形菜单

128x64 Yellow-Green OLED display

键盘

Keypad

16只轻触薄膜按键

16 Flat switch membrane with tactile-feel keys; polyester overlay

开关量

Discrete I/O

10xDI,12xDO(带过载保护)

10 Inputs; 12 Outputs(24VDC @500mA with over-load protection)

通讯接口 / USART

COM1: RS232COM2: RS485

通讯协议 / Serial Protocol

MODBUS-RTU

选件 / Option

A001: 4~20mA/0~10V; P001: Profibus DP

电源 / Power Supply

100~240VAC50/60Hz, <100mA(@100VAC)

工作环境

Operating Temperature

-10°C ~ +40°C,相对湿度:10%~90%,不冷凝

-10°C ~ +40°CRelative humidity:10%~90%non-condensing
