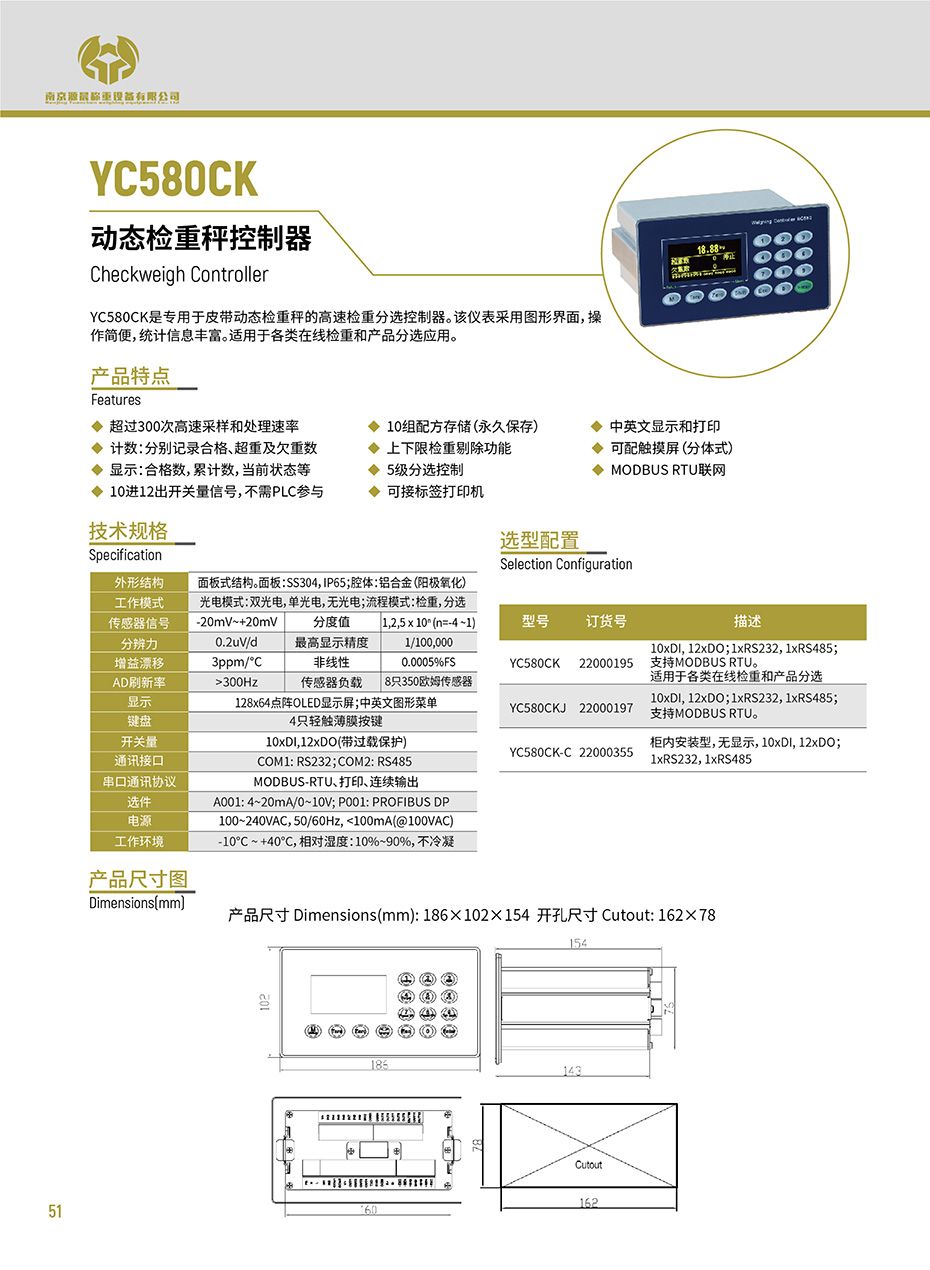

YC580CK

来源:   作者:admin 发布时间:2019/10/07 浏览量:531


YC580CK是专用于皮带动态检重秤的高速检重分选控制器。该仪表采用图形界面,操作简便,统计信息丰富。适用于各类在线检重和产品分选应用。

YC580CK controller is designed for hi-speed belt checkweigher. The controller is integrated counts and quantity accumulation, over-under checking, sorting, rejecting with 128x64 dot-matrix OLED GUI. It’s easy to operate and viewing statistic information with graphic menu tree.



产品尺寸
Dimensions(mm): 186×102×154  开孔尺寸 Cutout: 162×78




YC580CK尺寸图
       技术规格 Specification:

外形结构

Enclosure

面板式结构。面板:SS304IP65;腔体:铝合金(阳极氧化)

Panel Mount. Front plate: SS304, IP65. Case: Anodized Aluminum

工作模式

Work Mode

光电模式:双光电,单光电,无光电;流程模式:检重,分选

OPTO MODE: Dual-opto/ Single-opto No opto; WORK MODE: Checking/ Sorting

传感器信号

Signal Range

-20mV~+20mV

分度值

Increments

1,2,5 x 10n (n= -4 ~1)

分辨力

Max. Sensitivity

>0.2uV/d

最高显示精度

Max. Resolution

1/100,000

增益漂移

FS Drift

3ppm/°C

非线性

Linearity

0.0005%FS

AD刷新率

AD Refresh Rate

>300Hz

传感器负载

Cells Load

4350欧姆传感器

Four (4) 350 ohm load cells

显示 / Display

128x64点阵OLED显示屏;中英文图形菜单

128x64 Yellow-Green OLED display

键盘 / Keypad

16只轻触薄膜按键

16 Flat switch membrane with tactile-feel keys; polyester overlay

开关量

Discrete I/O

10xDI,12xDO(带过载保护)

10 Inputs; 12 Outputs(24VDC @500mA with over-load protection)

通讯接口 / USART

COM1: RS232COM2: RS485

串口通讯协议

Serial Protocol

MODBUS-RTU、打印、连续输出

MODBUS-RTU,  Print, Continuous Output

选件 / Option

A001: 4~20mA/0~10V; P001: PROFIBUS DP

电源/ Power Supply

100~240VAC50/60Hz, <100mA(@100VAC)

工作环境

Operating Temperature

-10°C ~ +40°C,相对湿度:10%~90%,不冷凝

-10°C ~ +40°CRelative humidity:10%~90%non-condensing
