YC580LH

来源:   作者:admin 发布时间:2019/10/07 浏览量:446

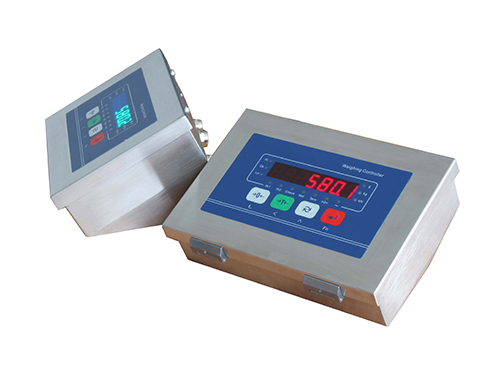

YC580LH防尘式称重显示器采用最新的专利设计结构,只需2个螺丝的安装即可开启或紧固壳体,使防护等级达到IP68,适用于各类对防水和防尘有严格要求的场合。采用卫生级的304不锈钢的壳体使之能轻松适用于食品行业和具有防腐要求的化工行业。YC580LH仪表配合安装附件后,可安装于台秤/平台秤的立柱或挂墙安装。

       YC580LH indicator is designed with a patented structure to simplify the installation work load by only 2 screws but the IP protection reach IP68. The YC580LH enclosure uses 304 stainless steel material and is special suitable for healthy concerned food/beverage industry or anti-corrosive chemical industry. With supporting attachments, the YC580LH terminal can be mounted on the wall or column supports.

11YC580LH尺寸图

技术规格 Specification:

外形结构

Enclosure

防尘式结构. 材料: SS304, IP68.

Harsh enclosure. Material: SS304, IP68.

工作模式

Run Mode

双速定量模式,预置点比较模式,上下限报警,检重控制,减量控制,峰值测力,毛/净灌装

2-speed material transfer mode, Setpoint comparisonOver/under, Check weighReduction weighPeak force measurementGross/net fill

传感器信号

Signal Range

-20mV~+20mV

分度值

Increments

1,2,5 x 10n (n=-3 ~1)

分辨力

Max. Sensitivity

0.5uV/d

最高显示精度

Max. Resolution

1/50,000

增益漂移

FS Drift

3ppm/°C

非线性

Linearity

0.003%FS

AD刷新率

AD Refresh Rate

100Hz

传感器负载

Cells Load

4350欧姆传感器

Four (4) 350 ohm load cells

显示 / Display

70.56寸红色LED

7-digit 0.56 segment LED

键盘 / Keypad

4只轻触按键

4 tactile-feel keys; polyester overlay

开关量

Discrete I/O

2个输入点(对COM短接有效),3个常开继电器触点

2 Inputs; 3 Relay Outputs(220VAC @ 5A)

通讯接口 / USART

COM1: RS232; COM2: RS485

串口通讯协议

Serial Protocol

MODBUS-RTU、命令、连续输出、打印

MODBUS-RTU, Command output, Continuous Output, Print

选件 / Option

4~20mA/0~10VProfibus DP

电源/ Power Supply

180~240VAC, 60mA; 24VDC, 150mA

工作环境

Operating Temperature

-10°C ~ +40°C,相对湿度:10%~90%,不冷凝

-10°C ~ +40°CRelative humidity:10%~90%non-condensing
