BC580LX

来源:   作者:admin 发布时间:2019/10/07 浏览量:540


  BC580Lx防爆称重显示器专为危险化工场合的称重和控制应用而开发。BC580Lx可用于危险化工产品的灌装,定量控制,料位指示,并可将危险区称重信号以数字或模拟通讯的方式传输至安全区的监控系统,集现场显示与远程传输于一体,适用于危险性气体环境下的称重控制应用。

防爆等级:Exd [ibⅡC]ⅡB T6


        BC580Lx Ex weighing indicator is designed for weighing and control application in hazardous fields. The BC580Lx can be used as drum-filling, material transferring, level indicator and also can transfer the weight information in hazardous out to PLC or SCADA by digital or analog communication, integrating field display and remote transmission at the same time, is an economical but efficient weighing solution for hazardous application.

1

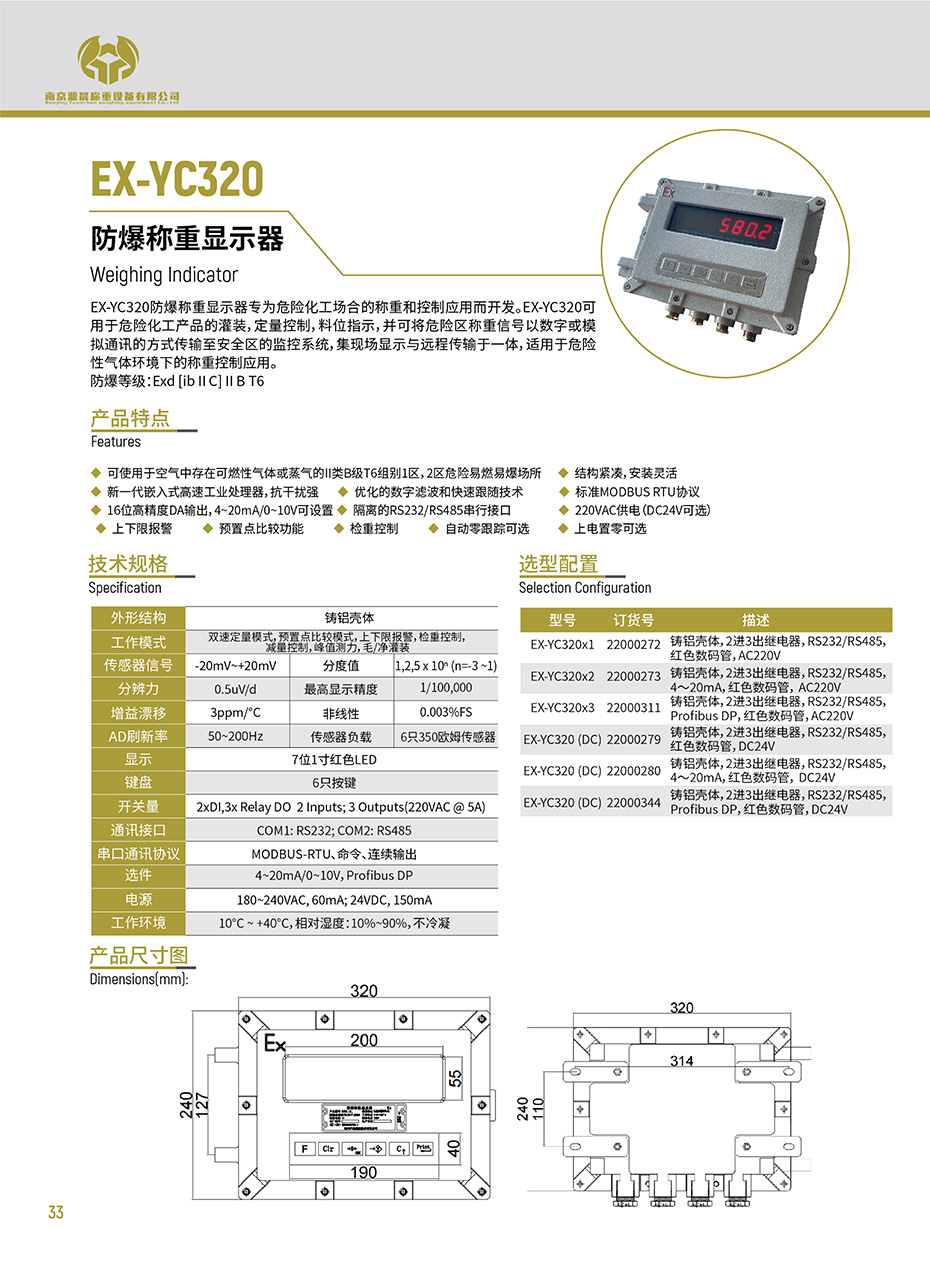

产品尺寸图:

11



技术参数:

外形结构

Enclosure

铸铝壳体

Cast Aluminum

工作模式

Application

双速定量模式,预置点比较模式,上下限报警,检重控制,减量控制,峰值测力,毛/净灌装

2-speed material transfer mode, Setpoint comparisonOver/under, Check weighReduction weighPeak force measurementGross/net fill

传感器信号

Signal Range

-20mV~+20mV

分度值

Increments

1,2,5 x 10(n=-3 ~1)

分辨力

Max. Sensitivity

0.5uV/d

最高显示精度

Max. Resolution

1/50,000

增益漂移

FS Drift

3ppm/°C

非线性

Linearity

0.003%FS

AD刷新率

AD Refresh Rate

100Hz

传感器负载

Cells Load

4350欧姆传感器

Four (4) 350 ohm load cells

显示 / Display

70.56寸红色LED

7-digit 0.56 segment LED

键盘 / Keypad

6只按键

keys

开关量

Discrete I/O

2xDI,3x Relay DO

2 Inputs; 3 Outputs(220VAC @ 5A)

通讯接口 / USART

COM1: RS232; COM2: RS485

串口通讯协议

Serial Protocol

MODBUS-RTU、命令、连续输出

MODBUS-RTU, Command output, Continuous Output

选件 / Option

4~20mA/0~10VProfibus DP

电源/ Power Supply

180~240VAC, 60mA; 24VDC, 150mA

工作环境

Operating Temperature

-10°C ~ +40°C,相对湿度:10%~90%,不冷凝

-10°C ~ +40°CRelative humidity:10%~90%non-condensing
