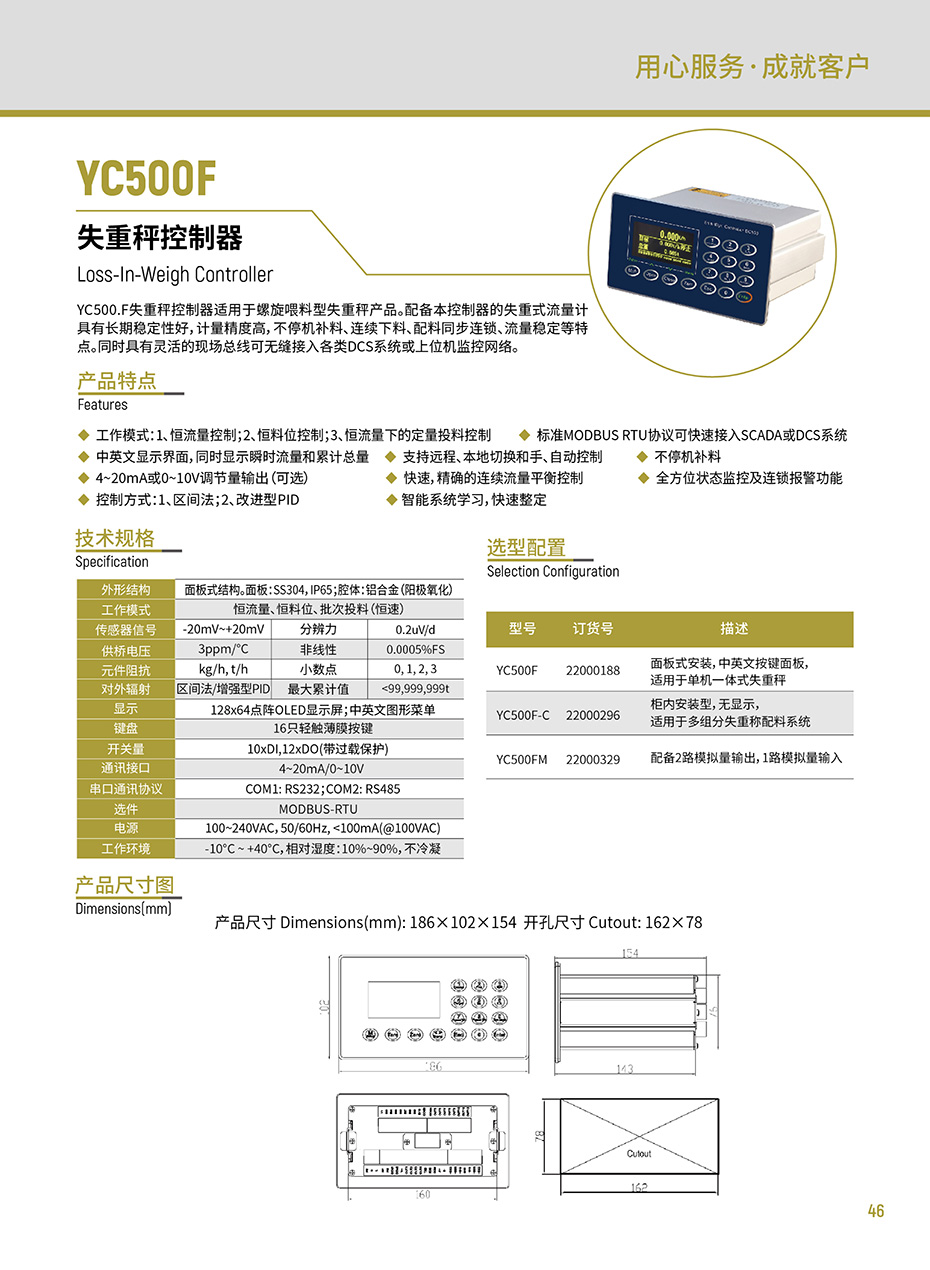

YC500.F失重秤控制器适用于螺旋喂料型失重秤产品。配备本控制器的失重式流量计具有长期稳定性好,计量精度高,不停机补料、连续下料、配料同步连锁、流量稳定等特点。同时具有灵活的现场总线可无缝接入各类DCS系统或上位机监控网络。
YC500.F Loss-In-Weigh
controller is suitable for the constant feeding machinery with screw feeder.
The LIW constant feeding machine Equipped with this controller brings
significant benefits with long-term stability, high measuring accuracy,
non-stop mending, constant feeding, and smooth flow rate control.
产品尺寸 Dimensions(mm): 186×102×154 开孔尺寸 Cutout: 162×78
技术规格 Specification: 外形结构 Enclosure 面板式结构。面板:SS304,IP65;腔体:铝合金(阳极氧化) Panel
Mount. Front plate: SS304, IP65. Case: Anodized Aluminum 工作模式 Run Mode 恒流量、恒料位、批次投料(恒速) Constant
feeding, Material level Balancing, Batch feeding 传感器信号 Signal
Range -20mV~+20mV 分辨力 Max.
Sensitivity 0.2uV/d 增益漂移 / FS
Drift 3ppm/°C 非线性 / Linearity 0.0005%FS 流量单位 /
Flowrate Unit kg/h,
t/h 小数点 /
Dec.point 0,
1, 2, 3 控制方式 /
Control Mode 区间法/增强型PID Zone
Adj. / PID Adj. 最大累计值 Max
Quantity <99,999,999t 显示 Display 128x64点阵OLED显示屏;中英文图形菜单 128x64
Yellow-Green OLED display 键盘 Keypad 16只轻触薄膜按键 16 Flat switch membrane with tactile-feel keys;
polyester overlay 开关量 Discrete
I/O 10xDI,12xDO(带过载保护) 10 Inputs;
12 Outputs(24VDC @500mA with over-load protection) 模拟量 /
Analog Output 4~20mA/0~10V 通讯接口 / USART COM1:
RS232;COM2: RS485 通讯协议 / Serial
Protocol MODBUS-RTU 电源 / Power Supply 100~240VAC,50/60Hz,
<100mA(@100VAC) 工作环境 Operating Temperature -10°C ~ +40°C,相对湿度:10%~90%,不冷凝 -10°C ~ +40°C,Relative
humidity:10%~90%,non-condensing
