YC500T

来源:   作者:admin 发布时间:2019/11/14 浏览量:453

YC580.T超薄导轨式定量控制模块特别适用于控制柜空间有限,采用触摸屏人机交互的一体化紧凑型包装或灌装控制系统。该仪表集高精度检测,灵活控制流程和丰富通讯接口于一体,广泛应用于冶金,化工,建材,涂料,粮食与饲料,食品饮料,港口等行业的包装,灌装,散料,配料等场合。

YC580.T Slim Din-rail batch weighing module is particularly suitable for the packing or filling machine with touch screen human-machine interaction. The instrument integrate high resolution, flexible control flow and rich communication interfaces in one, is widely used in metallurgy, chemical industry, building materials, paint, food and feed, beverage, ports and other sectors of packaging,drum-filling,dosing, bulk materials, ingredients and other occasions.

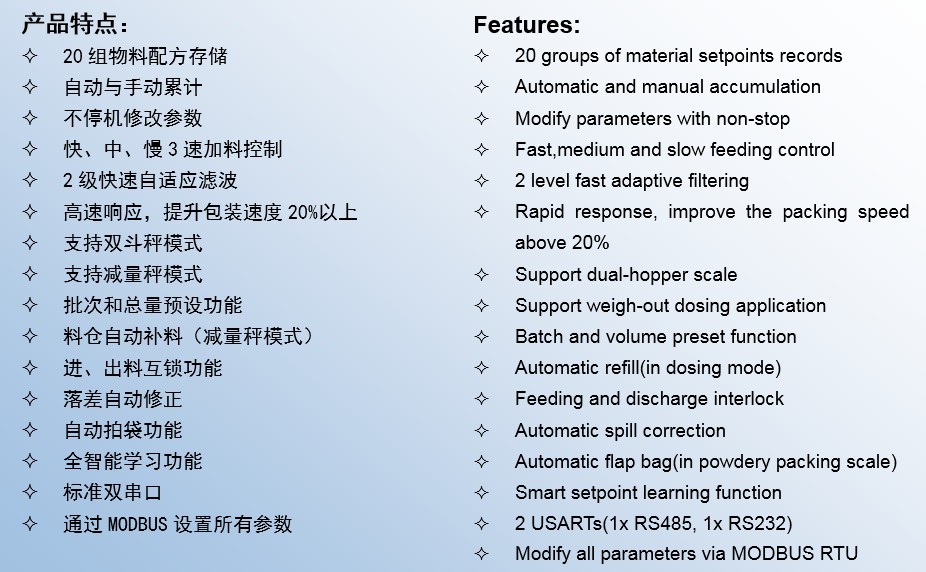

01

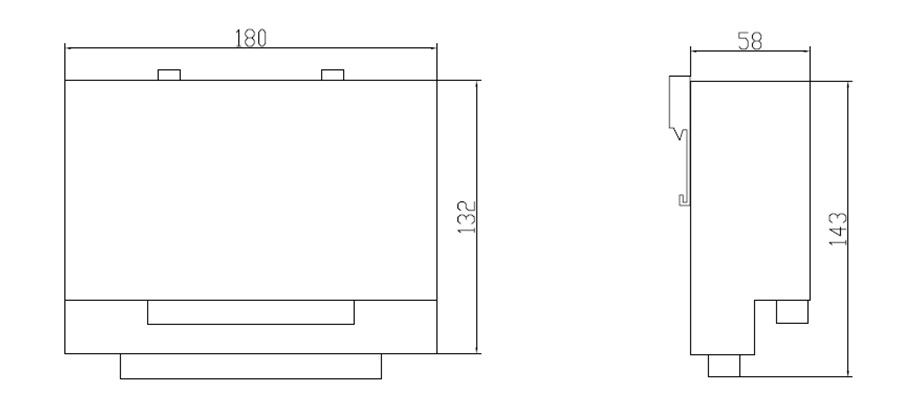

产品尺寸图 Dimensions(mm):
02
技术规格 Specification:

外形结构

Enclosure

导轨式结构,SS304IP54

Din-Rail Mount. SS304, IP54

工作模式

Run Mode

有斗秤、无斗秤、双斗秤、散料秤、减量秤、灌装系统

Packing Scale, Dual-hopper Scale, Bulk filling, Dosing,Drum Filling,

传感器信号

Signal Range

-20mV~+20mV

分度值

Increments

1,2,5 x 10n (n= -4 ~1)

分辨力

Max. Sensitivity

0.2uV/d

最高显示精度

Max. Resolution

1/100,000

增益漂移

FS Drift

3ppm/°C

非线性

Linearity

0.0005%FS

AD刷新率

AD Refresh Rate

>200Hz

传感器负载

Cells Load

8350欧姆传感器

Eight (8) 350 ohm load cells

开关量

Discrete I/O

10xDI,12xDO(带过载保护)

10 Inputs; 12 Outputs(24VDC @500mA with over-load protection)

通讯接口 / USART

COM1: RS232COM2: RS485

串口通讯协议

Serial Protocol

MODBUS-RTU、命令、打印、连续输出

MODBUS-RTU, Command output, Print, Continuous Output

电源/ Power Supply

100~240VAC50/60Hz, <100mA(@100VAC)

工作环境

Operating Temperature

-10°C ~ +40°C,相对湿度:10%~90%,不冷凝

-10°C ~ +40°CRelative humidity:10%~90%non-condensing
